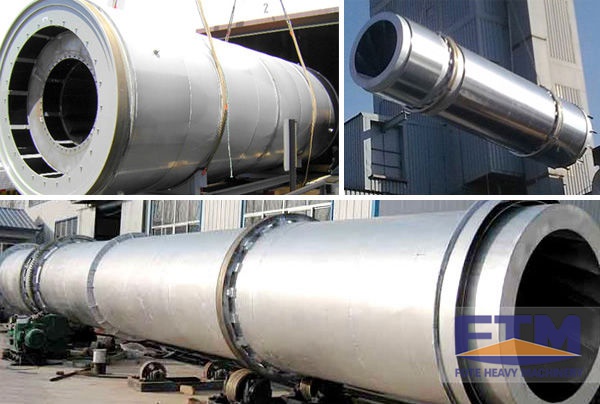

Sludge Dryer
Sludge dryer is primarily composed of heating source,feeding machine,rotary drum, crushing plants,discharging machine, induced draft fan,unloader,power distribution cabinet and other parts.
E-mail:market@sinoftm.com Inquiry Us Now OnlineIntroduction
Sludge dryer is primarily composed of heating source,feeding machine,rotary drum, crushing plants,discharging machine, induced draft fan,unloader,power distribution cabinet and other parts.Sludge dryer can dry materials with moisture content of 90% to dried finished products.For characteristics of easy to block in drying process,sludge dryer uses a combined self-cleaning device to greatly expand the scope of single-channel dry application,which not only can dry all sorts of sludge,but also dry various high-viscosity materials.
Features
The working area of sludge dryer includes discharging area, inclined lifting plate, clean areas, etc., and sludge dryer is widely used in the drying of activated sludge, sewage sludge, petrifaction sludge, paper mill sludge, dyeing sludge, civil sludge and other various sludge and high-humidity materials.
.jpg)
Parameter
| Model(m) （Diameter×Length） |
Cylinder volume （m³） |
Production capacity （t/h） |
Installation inclination （%） |
Highest intake air temperature （℃） |
Main motor （kw) |
Total weight （t） |
| Φ1.2×8.0 | 9.0 | 1.9～2.4 | 3～5 | 700～800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4～3.0 | 3～5 | 700～800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5～5.7 | 3～5 | 700～800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3～6.6 | 3～5 | 700～800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7～7.1 | 3～5 | 700～800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5～8.1 | 3～5 | 700～800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6～9.5 | 3～5 | 700～800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7～12.2 | 3～5 | 700～800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4～14.2 | 3～5 | 700～800 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0～16.2 | 3～5 | 700～800 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5～16.9 | 3～5 | 700～800 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4～21.7 | 3～5 | 700～800 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3～24.1 | 3～5 | 700～800 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2～26.5 | 3～5 | 700～800 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.4～34.0 | 3～5 | 700～800 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1～37.7 | 3～5 | 700～800 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7～47.1 | 3～5 | 700～800 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9～53.6 | 3～5 | 700～800 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8～76.0 | 3～5 | 700～800 | 160 | 135 |
