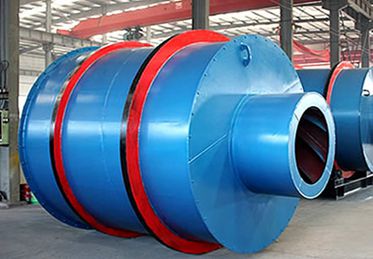

Sand Dryer
Sand dryer is also known as river sand dryer and sand rotary dryer, mainly applied to drying river sand, dry-mixed mortar, yellow sand, cement clinker, clay, coal gangue, mixtures, coal ash, gypsum, iron powder and other raw materials.
E-mail:market@sinoftm.com Inquiry Us Now OnlineIntroduction

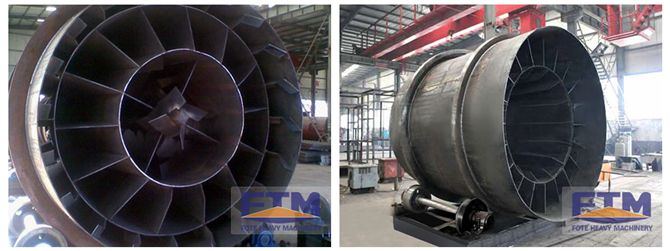

Sand dryer is also known as river sand dryer and sand rotary dryer, mainly applied to drying river sand, dry-mixed mortar, yellow sand, cement clinker, clay, coal gangue, mixtures, coal ash, gypsum, iron powder and other raw materials.widely used in building materials, chemical industry, casting industry and other industries, especially has an impressive effect on drying sand, river sand, silica sand, etc.
Features
Sand dryer is a kind of drying equipment used to drying large amount of materials, with reliable running, operating flexibility, adaptability, large capacity, wide range of application, low flow resistance, larger allowed fluctuation operation range, convenient operation, and other advantages. As a dryer specialist, Fote rotary sand dryer has reasonable prices and excellent quality, and Fote will provide you with first-class technical support, so Fote sand dryer is the best choice for users that should not be missed.
Parameter
| Item | φ2.0×6m | φ2.5×6.5m | φ2.7×7m | φ3×7m | φ3.2×7m | φ3.6×8m | φ4.2×8.5m | |
| Diameter of outer cylinder (m) | 2.0 | 2.5 | 2.7 | 3 | 3.2 | 3.6 | 4.2 | |
| Length of outer cylinder (m) | 6 | 6.5 | 7 | 7 | 7 | 8 | 8.5 | |
| Cylinder volume (m³) | 18.84 | 31.89 | 40.5 | 49.46 | 56.26 | 81.38 | 118 | |
| Rotating speed of cylinder (rpm) | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | |
| retention time of materials (min) | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | |
| Initial moisture of materials (%) | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | |
| Final moisture of materials (%) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| Highest intake air temperature ( ℃ ) | 750-900 ℃ | 750-900 ℃ | 750-900 ℃ | 750-900 ℃ | 750-900 ℃ | 750-900 ℃ | 750-900 ℃ | |
| Production capacity (T/H) | Slag | 20-25 | 25-30 | 30-35 | 35-10 | 40-45 | 50-65 | 70-85 |
| Coal ash | 10-17 | 17-21 | 20-25 | 23-27 | 25-30 | 30-45 | 45-63 | |
| Yellow sand | 20-27 | 25-40 | 27-45 | 30-45 | 35-50 | 55-75 | 75-99 | |
| Motor type | Yr160m-4 | Yr132m-4E | Yr160m-4 | Yr160m-4 | Yr132m-5E | Yr160m-4E | Yr160m-4E | |
| Motor power (kw) | 7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 11×4 | 15×4 | 18.5×4 | |
| Reducer type | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-8 | XWD-8 | |
| Velocity ratio of reducer (I) | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | |
