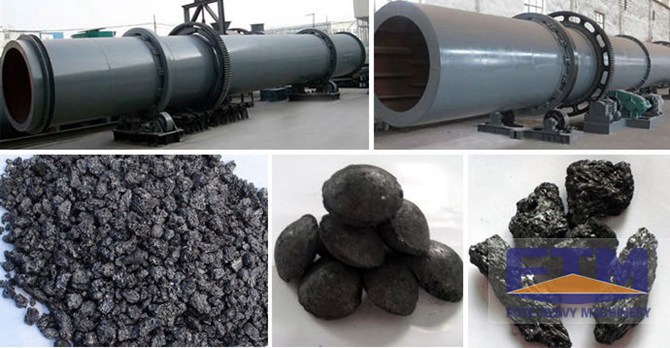

Coal Slime Dryer
According to working principle, coal slime dryer belongs to the rotary or rotary drum drying equipment, is very mature drying equipment in mining equipment, and it’s suitable for drying coal, coke, sludge and other industrial materials.
E-mail:market@sinoftm.com Inquiry Us Now OnlineIntroduction
According to working principle, coal slime dryer belongs to the rotary or rotary drum drying equipment, is very mature drying equipment in mining equipment, and it’s suitable for drying coal, coke, sludge and other industrial materials.
Features
Coal slime dryer or sludge dryer has strong anti-overload capability, large quantity management, low fuel consumption, low drying costs; Coal sludge dryer is with high production efficiency, ease of operation, internal design can be equipped with fire-proof material to cool materials based on user needs, and the feeding port is designed with ring and spiral lifting plate. Coal slime dryer is with reasonable structure, high output, low energy consumption, low operation cost and so on.
Parameter
| Model(m) （Diameter×Length） |
Cylinder volume （m³） |
Production capacity （t/h） |
Installation inclination （%） |
Highest intake air temperature （℃） |
Main motor （kw) |
Total weight （t） |
| Φ1.2×8.0 | 9.0 | 1.9～2.4 | 3～5 | 700～800 | 7.5 | 9 |
| Φ1.2×10 | 11.3 | 2.4～3.0 | 3～5 | 700～800 | 7.5 | 11 |
| Φ1.5×12 | 21.2 | 4.5～5.7 | 3～5 | 700～800 | 15 | 18.5 |
| Φ1.5×14 | 24.7 | 5.3～6.6 | 3～5 | 700～800 | 15 | 19.7 |
| Φ1.5×15 | 26.5 | 5.7～7.1 | 3～5 | 700～800 | 15 | 20.5 |
| Φ1.8×12 | 30.5 | 6.5～8.1 | 3～5 | 700～800 | 18.5 | 21.5 |
| Φ1.8×14 | 35.6 | 7.6～9.5 | 3～5 | 700～800 | 18.5 | 23 |
| Φ2.2×12 | 45.6 | 9.7～12.2 | 3～5 | 700～800 | 22 | 33.5 |
| Φ2.2×14 | 53.2 | 11.4～14.2 | 3～5 | 700～800 | 22 | 36 |
| Φ2.2×16 | 60.8 | 13.0～16.2 | 3～5 | 700～800 | 22 | 38 |
| Φ2.4×14 | 63.3 | 13.5～16.9 | 3～5 | 700～800 | 37 | 45 |
| Φ2.4×18 | 81.4 | 17.4～21.7 | 3～5 | 700～800 | 37 | 49 |
| Φ2.4×20 | 90.4 | 19.3～24.1 | 3～5 | 700～800 | 45 | 54 |
| Φ2.4×22 | 99.5 | 21.2～26.5 | 3～5 | 700～800 | 45 | 58 |
| Φ2.6×24 | 127.4 | 27.4～34.0 | 3～5 | 700～800 | 55 | 73 |
| Φ3.0×20 | 141.3 | 30.1～37.7 | 3～5 | 700～800 | 75 | 85 |
| Φ3.0×25 | 176.6 | 37.7～47.1 | 3～5 | 700～800 | 75 | 95 |
| Φ3.2×25 | 201 | 42.9～53.6 | 3～5 | 700～800 | 90 | 110 |
| Φ3.6×28 | 285 | 60.8～76.0 | 3～5 | 700～800 | 160 | 135 |
